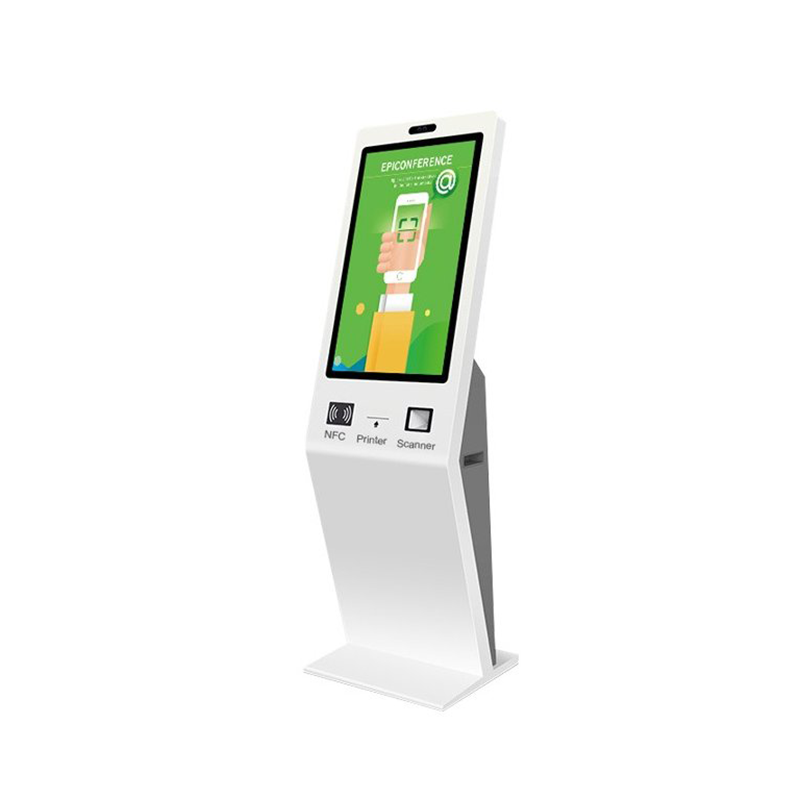

The ticket queuing kiosk, with its high-end, modern design and intelligent functions, provides an efficient and convenient customer service solution for various high-traffic public places. Whether in banks, hospitals, government service halls, shopping malls, supermarkets, or other commercial places, this device can help companies optimize queue management, improve customer experience, reduce waiting time, and effectively improve overall operational efficiency.
Self-service queuing and ticketing machine description
| Industrial control motherboard | I5, 5Th Generation | Touch display | 26.6-Дюймовый емкостный сенсорный экран |
| Память | 8G | Receipt Printer | Panel-type 80 thermal printing |
| Hard disk | 128G | Barcode Scanner | 1Д & 2Д |
| System | Android 11 система | Payment module | Cash and card payment |
| Communication module | 4G module and WiFi | Card reader | IC/Magnetic Stripe/NFC Card Reader |
| Camera | Binocular camera | Keyboard | Metal keyboard |
Main features:
- 80mm printer and cutter integration: The device has a built-in high-performance 80mm thermal printer, which supports fast printing of tickets, receipts, и т. д., and is equipped with an automatic cutter to ensure neat printing of items and efficient operation, reducing manual intervention.
- 2D scanner and NFC support: The equipped 2D scanner supports efficient scanning of barcodes, QR codes and other information, and integrates NFC function, which can be used to support mobile payment, identity authentication and other application scenarios.
Multi-operating system configuration: According to customer needs, the terminal can provide Android, Windows or Linux operating system, making it compatible with various software and applications to meet the specific needs of enterprises.
- Flexible configuration selection: The terminal has a variety of hardware configurations to choose from, suitable for retail, finance, транспорт, medical and other industries. The specific configuration combination can be customized according to customer needs and flexibly adapt to various usage scenarios.
- Rugged and modern design: The device shell is made of durable materials, adapting to high-frequency use environments, with a simple and modern design, suitable for deployment in various public places to enhance the corporate image.
Applicable scenarios:
Retail industry: self-service checkout, ticket printing, membership card issuance and other functions.
Transportation industry: automatic ticket vending machines, ticket printing, identity authentication and other applications.
Financial industry: self-service bank terminals, bill printing, account inquiry, и т. д..
Public service field: self-service equipment in hospitals, government agencies, и т. д., providing ticketing, queue management, information inquiry and other services.
Product Parameters
| Android version | Windows/Linux version | |
| Процессор + OS | RK3288 + Android 7 | Celeron + Windows 10 |
| RK3328 + Android 9 | Core i3 + Windows 10 | |
| RK3568 + Android 11 | Core i5 + Windows 10 | |
| Память | 1+8 GB (RK3288) | 4+128 GB (standard) |
| 2+16 GB (RK3328, RK3568) | custom RAM + SSD | |
| LAN | 100/1000 Mb/s | 100/1000 Mb/s |
| Wi-Fi | 802.11 b/g/n | 802.11 b/g/n |
| Bluetooth | yes | no |
| NFC | yes | yes |
| Interface | 1× HDMI | 1× HDMI |
| 1× RJ45 | 1× RJ45 | |
| 1× Audio | 1× Audio | |
| 1× SD Card | 1× VGA | |
| 5× USB, 2× USB HOST | 4× USB | |
| Display | 24", 1920 × 1080 px, IPS, 300 cd/m2, 1200:1, 178°/178°(H/V) | |
| 27", 1920 × 1080 px, IPS, 300 cd/m2, 1200:1, 178°/178°(H/V) | ||
| Touch Type | 10 points real PCAP touch screen | |
| Glass on screen | 3mm tempered glass | |
| Shell material | Aluminum + Metal | |
| Power Consumption | 40 W. | |
| Life Time | >50000 (hours) | |
| Scanner | 1D/2D scanner with NFC reader | |
| Printer | 80 mm thermal printer with cutter | |
| Operation temperature | 0-50°C | |
| Storage temperature | -20-60°C | |
